Commercial

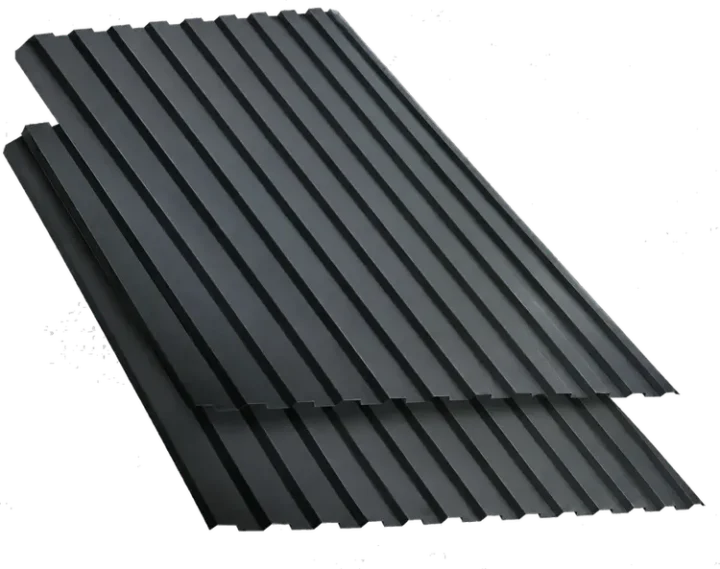

AluShade Cladding Sheet
A close-ribbed sheet for facades and walls, with a 75mm pitch that reads as a fine vertical line…
Read more

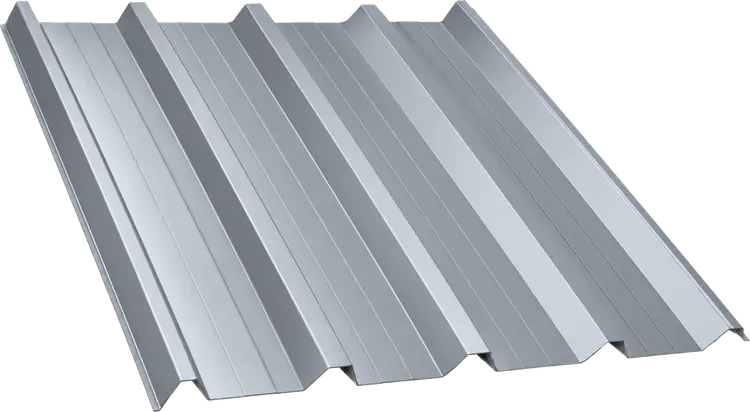

AluShade Max
The mid-width commercial profile, with a deeper pitch spacing that stiffens the sheet across longer bays.
Suits: office and retail roofs of moderate span.
Gauge 5-rib
Available lengths
Standard / Customised
Available lengths
Standard / Customised
Specification
The numbers, as published
Showing 5-rib . Switch gauge above to compare.
| Thickness (TCTP in mm) | 0.40-0.91 |
|---|---|
| Effective Cover Width (mm) | 1020 + 10 |
| Overall Width (mm) | 1098 + 10 |
| Pitch (mm) | 208 + 2 |
| Trough Depth (mm) | 25 + 2 |
| Length | Standard / Customised |
- Showing 5-rib. Switch gauge above to compare.
Showing 6-rib. Switch gauge above to compare.
| Thickness (TCTP in mm) | 0.40-0.91 |
|---|---|
| Effective Cover Width (mm) | 1020 + 10 |
| Overall Width (mm) | 1098 + 10 |
| Pitch (mm) | 255 + 2 |
| Trough Depth (mm) | 30 + 2 |
| Length | Standard / Customised |
- Showing 6-rib. Switch gauge above to compare.
Finishes
Choose the colour
METALLIC
Copper
METALLIC
SOLID
TEXTURE
Grey
TEXTURE
Commercial
AluShade Pro Max
The widest profile we roll, at 1200mm of cover, built for large commercial roofs where every lap costs…
Read more
Commercial
AluShade Super
The narrowest of the three commercial profiles, with a 200mm pitch and 30mm trough for standard roof and…
Read more
