Residential

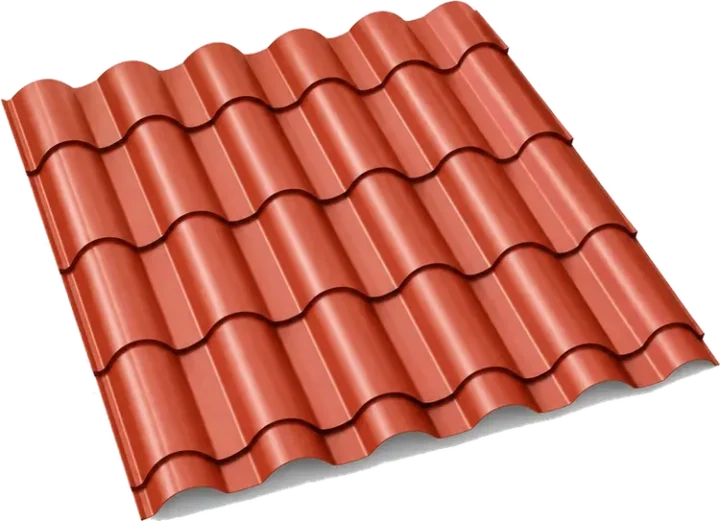

AluShade Terra Tile
A deeper, rounded tile form in terracotta and solid finishes, the closest thing in the range to a…
Read more

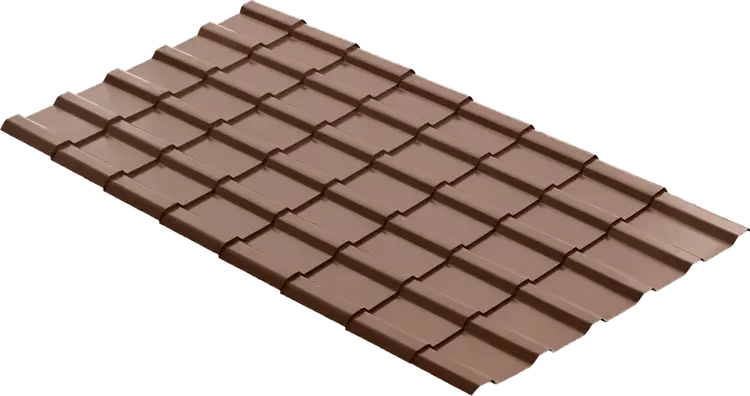

AluShade Lux Tile
The widest tile in the range, with a shallow trough and over a metre of cover, so large roof planes need fewer sheets.
Suits: larger houses where fewer laps means a cleaner roof plane.
Available lengths
8ft, 10ft, 12ft, 14ft, 16ft & 18ft
Specification
The numbers, as published
| Thickness (TCTP in mm) | 0.50-0.91 |
|---|---|
| Effective Cover Width (mm) | 1114 ± 4 |
| Overall Width (mm) | 1168 ± 4 |
| Pitch (mm) | 222.8 |
| Trough Depth (mm) | 20 |
| Length | 8ft, 10ft, 12ft, 14ft, 16ft & 18ft |
Finishes
Choose the colour
METALLIC
Copper
METALLIC
SOLID
TEXTURE
Residential

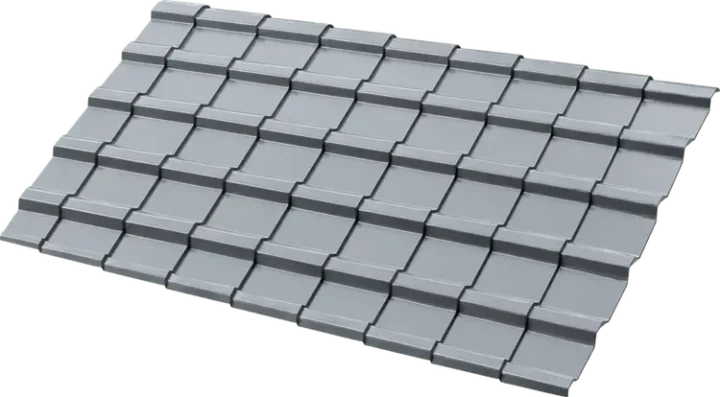

AluShade Glam Tile
A shallow tile profile with a wide cover, for homes that want a tiled roofline without the weight…
Read more
