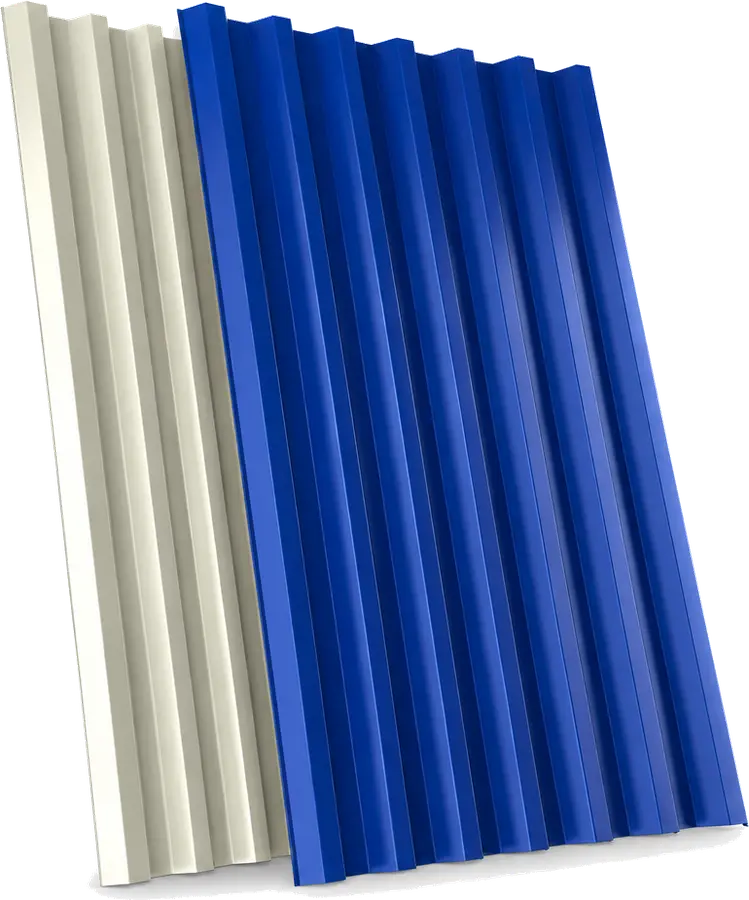

AluShade High Rib
Deep-rib industrial sheeting in 3105 grade alloy, with a 38mm trough that spans further and clears water faster.
Suits: factories, warehouses and storage buildings.
Gauge Standard gauge
Available lengths
Standard / Customised
Available lengths
Standard / Customised
Specification
The numbers, as published
Showing Standard gauge. Switch gauge above to compare.
| Thickness (TCTP in mm) | 0.50-0.91 |
|---|---|
| Effective Cover Width (mm) | 872 ± 10 |
| Overall Width (mm) | 942 ± 10 |
| Pitch (mm) | 125 |
| Trough Depth (mm) | 38 |
| Length | Standard / Customised |
- Rolled from 3105 grade aluminium alloy
- A 38mm trough for long spans and fast drainage
- Corrosion resistant on coastal and chemical sites
- Fire-resistant properties
Showing Light gauge. Switch gauge above to compare.
| Thickness (TCTP in mm) | 0.38-0.55 |
|---|---|
| Effective Cover Width (mm) | 996 ± 10 |
| Overall Width (mm) | 1062 ± 10 |
| Pitch (mm) | 125 ± 2 |
| Trough Depth (mm) | 38 |
| Length | Standard / Customised |
- Rolled from 3105 grade aluminium alloy
- A 38mm trough for long spans and fast drainage
- Corrosion resistant on coastal and chemical sites
- Fire-resistant properties
Finishes
Choose the colour
METALLIC
Copper
METALLIC
SOLID
TEXTURE
METALLIC
Copper
METALLIC
SOLID
TEXTURE
