Product Catalogue
Alushade Max
Thickness(mm)- 0.40-0.91
Effective Width(mm)- 1000 + 2
Overall Width (mm)- 1065 + 2
Pitch (mm)- 204+2
Trough Depth (mm)- 30
Length- Standard/Customized
Available Colors
Alushade Max
Thickness(mm)- 0.40-0.91
Effective Width(mm)- 1020 + 2
Overall Width (mm)- 1098 + 2
Pitch (mm)- 255 + 2
Trough Depth (mm)- 25+2
Length- Standard/Customized
Available Colors
Alushade Super
Thickness(mm)- 0.40-0.91
Effective Width(mm)- 1000 + 2
Overall Width (mm)- 1065 + 2
Pitch (mm)- 200
Trough Depth (mm)- 30
Length- Standard/Customized
Available Colors
Alushade Pro Max
Thickness(mm)- 0.40-0.91
Effective Width(mm)- 1200 + 2
Overall Width (mm)- 1262 + 2
Pitch (mm)- 200
Trough Depth (mm)- 30
Length- Standard/Customized
Available Colors

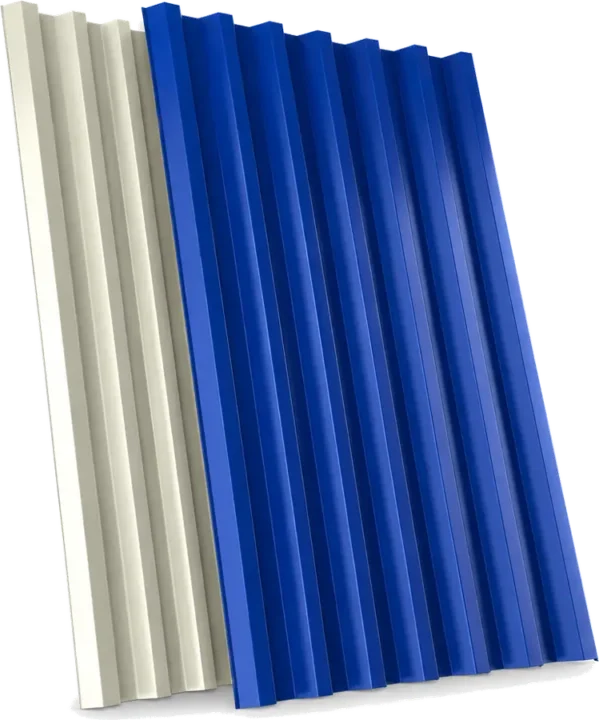

Alushade High Rib
Thickness(mm)- 0.50-0.91
Effective Width(mm)- 872 + 10
Overall Width (mm)- 942 + 10
Pitch (mm)- 125
Trough Depth (mm)- 38
Length- Standard/Customized
Available Colors
Alushade High Rib
Thickness(mm)- 0.38-0.55
Effective Width(mm)- 996 + 10
Overall Width (mm)- 1062 + 2
Pitch (mm)- 125 + 2
Trough Depth (mm)- 38
Length- Standard/Customized
Available Colors
Alushade Glam Tile
Thickness(mm)- 0.50-0.91
Effective Width(mm)- 993 + 10
Overall Width (mm)- 1134 + 10
Pitch (mm)- 248+2
Trough Depth (mm)- 28+2
Length- 8ft,10ft,12ft,14ft,16ft & 18ft
Available Colors
Alushade Terra Tile
Thickness(mm)- 0.50-0.91
Effective Width(mm)- 1100
Overall Width (mm)- 960 + 5
Pitch (mm)- 160 + 2
Trough Depth (mm)- 30 + 2
Length- 8ft,10ft,12ft,14ft,16ft & 18ft
Available Colors
Alushade Lux Tile
Thickness(mm)- 0.50-0.91
Effective Width(mm)- 1114 + 4
Overall Width (mm)- 1168 + 4
Pitch (mm)- 222.8
Trough Depth (mm)- 20
Length- 8ft,10ft,12ft,14ft,16ft & 18ft
Available Colors
